☁️ Google Drive

Start by instantiating the service:

val service = CloudBridge.googleDrive(clientId = "yourClientId")

On desktop, also pass the client secret. This is provided in the Google Drive API console when you create a desktop client.

CloudBridge.googleDrive(
    clientId = "yourClientId",
    desktopClientSecret = "yourSecret"
)

On Android, the client ID isn't used (Google Identity Services identifies the app by its package name and signing certificate), so any value works.

Then, authenticate using the platform-specific methods below. Once authenticated, the shared API is available.

Compatibility

App Data folder visibilityDuplicationFile typesPathsToken refresh

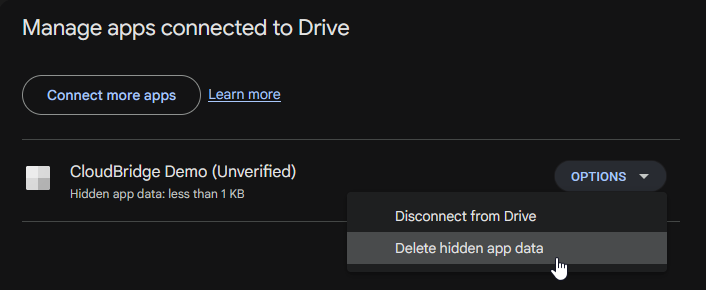

The App Data folder is not shown to users. A user can only see the amount of space it takes up by going to drive.google.com and navigating to Settings » Manage apps.

Files and folders don't need unique names in Google Drive. To avoid confusing duplicates, CloudBridge does its best to prevent them: createFile(), createFolder(), moveFile() and moveFolder() first check the target folder and throw a ConflictException if a file/folder with the new name already exists.

Folders in Google Drive are just files, but with the mimetype application/vnd.google-apps.folder.

Google Drive doesn't have the concept of paths. Instead, every file has a list of "parent file IDs". In the past, there could be multiple, but now every file can have just one parent.

To offer a unified API, CloudBridge still builds a path for Drive files. It will contain the parent file ID and filename. For example, a nested folder could look like /A2vXis2oKtcHO/9xZDTanHiFcgg/ and a file inside a folder could be /9xZDTanHiFcgg/promotion.txt.

Passing in a deeper path on a file (for example /id1/id2/file.txt) has no effect, as only the last part (id2) is set as a parent to the file/folder.

When retrieving changes with getDelta(), Google Drive only reports the ID of deleted items. The path of a DeletedDeltaChange is therefore /<fileId>, so match deletions on itemId.

Google Drive differs per platform:

• Android: a new token is requested from Google Identity Services silently. It doesn't tell when a token expires, so this only happens after a token is rejected. The new token is requested for the account in CloudAccessToken.account. If the user needs to grant access again, a NotAuthenticatedException is thrown; call GoogleDriveAuthenticator.authenticate() then.
• Web: the implicit flow has no refresh token, so tokens can't be refreshed. Re-authenticate when a NotAuthenticatedException is thrown.

Registration in Cloud Console

Info

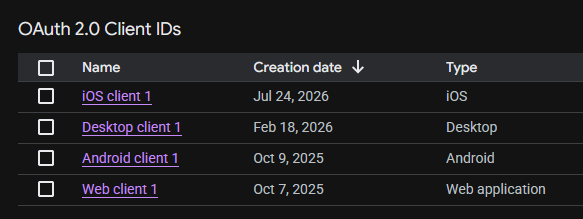

Every platform needs to be registered in the Google Cloud Console as "OAuth 2.0 Client ID" with the correct type (e.g., iOS, Android, Web, Desktop).

Authenticating

AndroidiOSDesktopWeb

Google no longer supports custom-scheme redirects on Android, so the library has to use Google Identity Services instead. This happens automatically by using GoogleDriveAuthenticator wrapper:

val googleDriveAuthenticator = GoogleDriveAuthenticator(
    activity = this,
    onSuccess = { token ->
        service.setToken(token)
        TODO("Store the token locally")
    },
    onDenied = { TODO() },
    onFailure = { error -> TODO() }
)

Call googleDriveAuthenticator.authenticate() to start. It always shows an account picker.

Securely store the token, including token.account, and pass it to the constructor of the service to use it. The account is needed to refresh the token.

Multiple accounts: create one CloudBridge.googleDrive() instance per account and call authenticate() again to add another one. Each token refreshes for its own account.

The redirect URI scheme (com.example.app) needs to match the one defined in your app's Info.plist.

service.authenticate(
    redirectUri = "com.example.app:/cloudbridge-auth" // change to your app
)?.let { token ->
    service.setToken(token)
    TODO("Store the token locally")
}

val authServer = LocalAuthenticationServer()

// Build auth URL and open it in the browser
val url = service.authenticate(
    authServer = authServer,
    onSuccess = { token ->
        service.setToken(token)
        TODO("Store the token locally")
    }
)
openBrowser(url)

Google Drive does not support PKCE flow on web, only implicit grant. This means the token cannot be refreshed when it expires and the user needs to re-authenticate.

See https://developers.google.com/identity/protocols/oauth2/javascript-implicit-flow.

// Always call this:
val token = service.completeAuthentication()
if (token != null) {
    service.setToken(token)
}

// When user wants to authenticate:
val uri = service.authenticate(redirectUri = "yourRedirectUri")
window.location.href = uri
